Brakes
Summit
Racing Line Lock
Installation
and Instructions

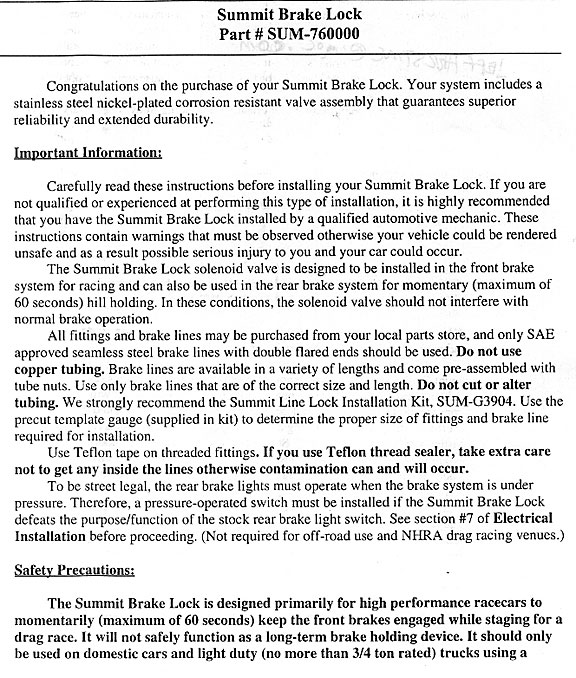

Instruction
Sheet #1

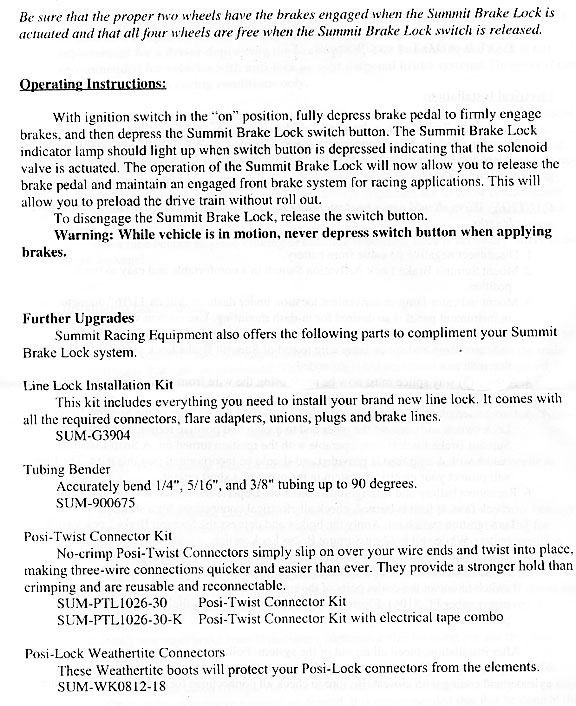

Instruction
Sheet #2

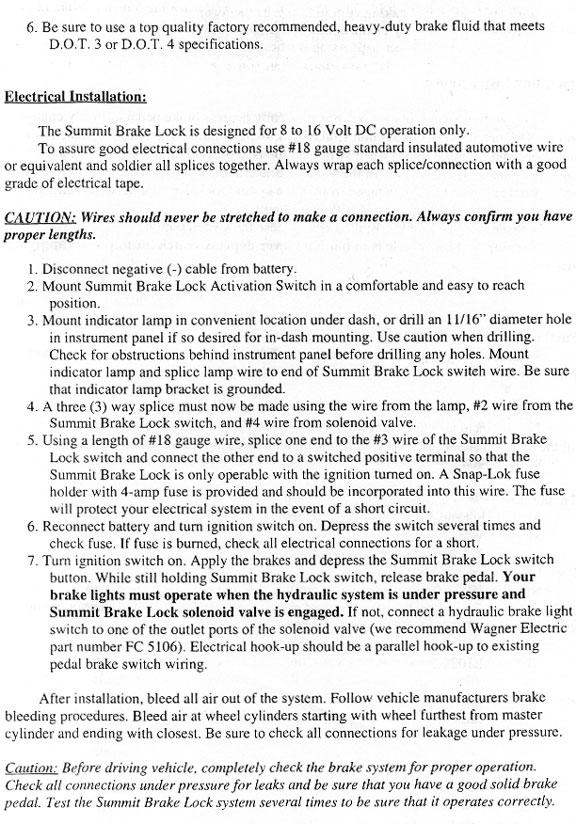

Instruction
Sheet #3
Instruction
Sheet #4
PARTS:
Summit
Racing #SUM-760000
Summit
Racing #SUM-G3904
Here
are the photos of the installation on a 1991 Turbo MR2 with ABS:
The
OEM hose, highlighted in red below, is what gets replaced with
the line lock lines.
Below
is a frontal illustration of where the above line goes into the
ABS unit.
Final
install in my dirty trunk. The line lock solenoid was mounted
inside
the fender and the new lines had to be bent to fit the space.
The electrical lines lead to a switch in the interior so
that
the line lock can be set when it is ready to be used.
The large nut on top of the solenoid can be loosened to turn
the
solenoid in order to have the holes for the brake lines pointing
in any direction.
When
all is finished, press the brake pedal in. Then press and HOLD
the line lock button. Release brake pedal. The front brakes
should be locked as long as you hold the button in (no more than
a minute!)
|
